H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing
  • H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing
  • H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing
  • H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing
  • H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing
  • H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing
  • H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing
H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing

H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing

Place of Origin Shanghai, China
Brand Name Hanyang clean
Model Number H-1106
Product Details
Material Composition:
99% Polyester, 1% Carbon Conductive Fiber
Surface Resistance:
10⁶-10⁷ Ω
Point Impedance:
≤10⁸ Ω
Fabric Weight:
≈110g/m² (100D), ≈105g/m² (75D)
Fabric Density:
165*80 B/cm (100D), 158*92 B/cm (75D)
Conductive Fiber Gap:
5mm (100D), 4.5mm (75D)
Electrostatic Dissipation:
<0.5s (5000V To 50V)
Friction Voltage:
<300V
Charge Level:
0.18 µC/set
Cleanroom Class:
Class 1000 (Stripe), Class 100 (Grid)
Yarn Specification:
100D×100D Strip
Fastening Type:
Zipper
Waist Adjustment:
Adjustable Welt
Operating Temperature:
20℃±5℃
Operating Humidity:
35%±5%
Highlight:

ESD clean room clothing

,

anti-static safety suit

,

ESD garment with warranty

Product Description
Technical Parameter
Specifications  100D 48F*100D 48F(100D materials) Technical Requirements Test Results Single determination
75D 72F*75D 72F(75D materials) / / /
Weight (g) ≈ 110g/m2(100D);≈ 105g/m2(75D) / / UP TO STANDARD
Density(b/cm) 165*80 b/cm(100D);158*92 b/cm(75D)
Electrical Resistance 106-109(ESD stripe),                  106-108(ESD grid)
Electrostatic dissipation time less 0.5s from5000V to 50V(Adapt to Class100)
Resistance Value Surface Resistance:106-107Ω;point to point impedance:≤108Ω
Charge(µC/set) / Grade A<0.20;Grade B:0.20-0.60 0.18
Environment Temperature:20℃±5℃;  Relative Humidity:35%±5% Environment Temperature:20.1℃;Relative Humidity:35.1%
Static wire gap 5mm(100D);4.5mm(75D) / /
Cleanroom Class standard Antistatic Stripe material:Class 1000                                         Antistatic Grid material:Class 100 / /



Place of Origin:Jiangsu, China
Brand Name:Hanyang Clean
Model Number:H-1106

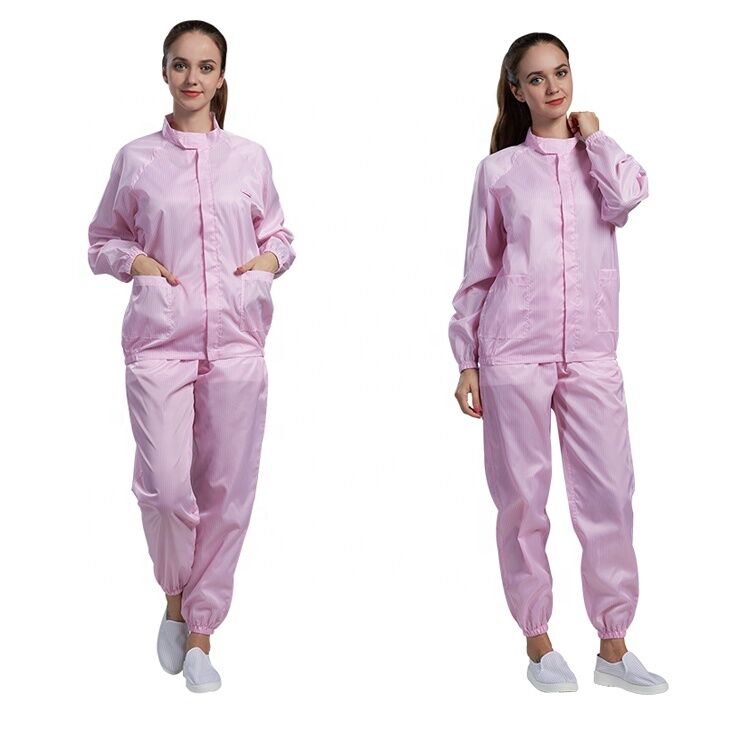

Product name:ESD Anti-static coverall jumpsuit
Details: Jacket & pant split design ,adjustable stand collar
pulling zipper,chest loop,arm pen pocket
elastic cuff,elastic side waist
Material: 99%Polyester& 1% Carbon Conductive Fiber
Yarn:100DX100D strip
Conductive fiber interval :5mm strip
Color:White, Blue or Customized
Style: Unisex design
Surface Resistance:10e6~10e9 Ω
Density:1.2mc/M
Friction voltage:<300V
Standard :GB 12014-2019
Performance grade:10000/100000 degree or D level
Function:ESD Protective,dust-proof
Size:From S to 4XL,customized
Feature:comfortable,Excellent barrier of particulate,cleanness
Application: Pharmaceuticals,Biotechnology
Logo: print or embroidery accepted
